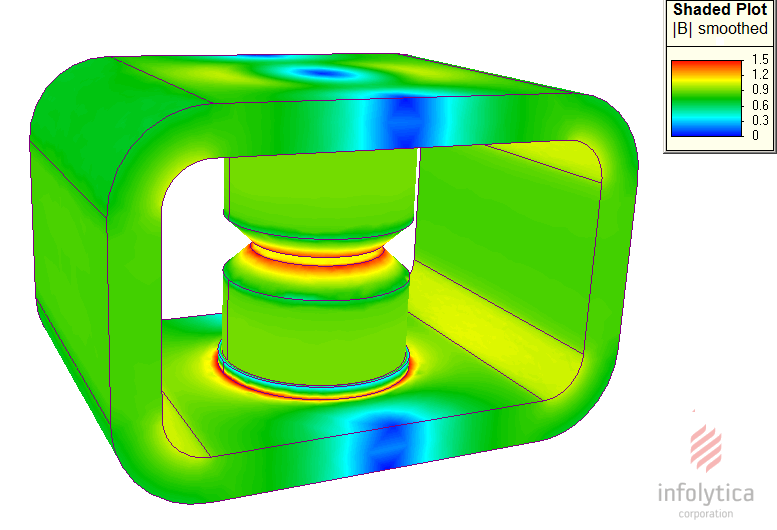

Magnetic Field Calculation by means of Finite Element Analysis (FEA)

Numeric calculation of field values does support you in

  • optimisation of your magnet system according to your specifications
  • calculation of flux distribution, field homogeneity, and mechanical forces
  • determination of the required magnet material specs
  • calculation and minimisation of excitation coil power
  • calculation of required iron path cross sections
  • stability analysis
  • worst-case-scenario investigations

We offer simulations in 2D and 3D (static / quasi-static) of permanent magnetic and electro magnetic systems.

Finite Element
                          Analysis (FEA)


Take advantage of our established experience in design and optimisation of magnetic devices!

Examples:

  • sensor systems (such as rotary encoders, proximity switches, ...)
  • magnetic clamps
  • loudspeakers
  • permanent magnetic / electro magnetic coupling

Often, a computer simulation is more economically priced, faster and more meaningful than building many prototypes instead - send us your request!
